- Size: 1.85
- Place of Origin: China
- Brand Name:
- Model Number: FX-LML2230D
- Weight: 240.000 kg

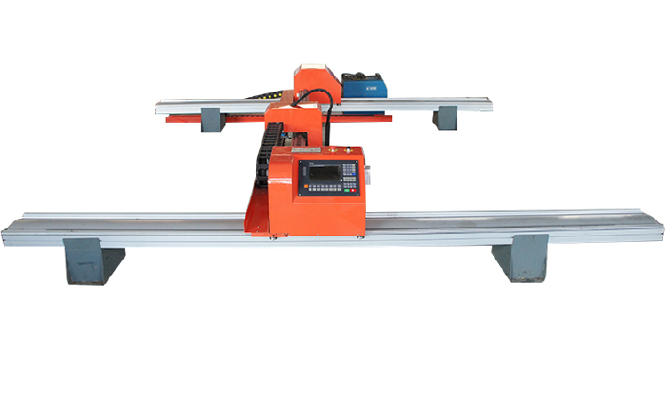

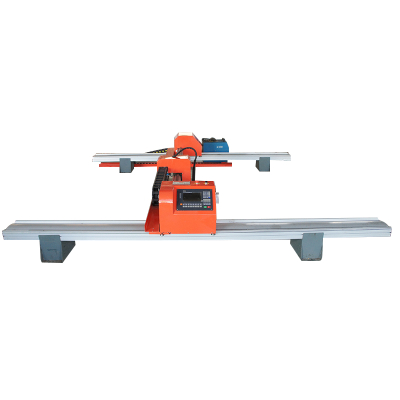

Product Feature：
1. Adopt newest aviation aluminum meticulously, full of The Times flavor, beauty and durable use. Newest transmission structure with precision rack and special reducer to ensure the accuracy of the transmission, Y axis adopts double driver to provide large torque for machine. The control cable is made by imported retardant wear-resisting material.
2. The drive system adopts USA chip control and high precision motors, providing with big torque to ensure running smoothly under high speed.
3. Control system is 7 "screen, with English and Chinese language. The machine adopts high precision arc voltage automatic torch height controller.
4. Optional function: Plasma/Plasma and Flame
5. Optional configuration: Stepper motor/servo motor; linear rail/SBR round rail
6. Machine size: A、2230: 2200*3000mm B、2240: 2200*4000mm
C、2260: 2200*6000mm D、22120: 2200*12000mm
- Size: 1.85
- Place of Origin: China
- Brand Name:
- Model Number: FX-LML2230D
- Weight: 240.000 kg
Technical parameters:
FX-LML2230D | |||
BASIC INFORMATION | Cutting method | Plasma | Flame(Optional) |
Machine size | 3550*3300mm | ||
Cutting material | All metal sheet | Mild/High Carbon steel | |
Cutting size | 2200*3000mm | ||
Cutting thickness | According to Plasma source | 6-200mm | |
Lifting travel | ≤130mm | ||
Max travel speed | 6000mm/min | ||
Running accuracy | ≤0.05mm | ||
CONFIGURATION LIST | CNC controller | Startshaphon | |
Remote control | Yes | ||
Auto Height control | HYD XPTHC-16 | Lifter | |
Motor drive mode | Stepper motor | ||
Drive system | Dual drive | ||
Reducer | X axis: Gear box Y axis: Direct drive | ||
Transmission method | Rack and pinion drive | ||
Linear guide | Linear axis | ||
X,Y Axis beam | Heavy duty aviation aluminum-alloy | ||
EXTERNAL SUPPLY | Power | 220V/ 380V(Optional) | |
Cutting gas | Compressed air | Oxygen Ethyne(Propane) | |
Gas pressure | 0.4-0.7MPa | Oxygen:0.5MPa Fuel gas:0.1MPa | |
SOFTWARE | Graphic import method | USB | |
Programming software | AutoCAD(all dxf,dwg,CAM,NC files) | ||
Nesting software | FastCAM | ||
ACCESSORIES | Torch | One set of Plasma torch | One set of Flame torch |
Consumables | 10 sets of nozzles | 3 Flame nozzles | |
PACKING INFORMATION | Dimension | Plasma source :to be confirmed | |
Weight | 230Kg Plasma source | ||
