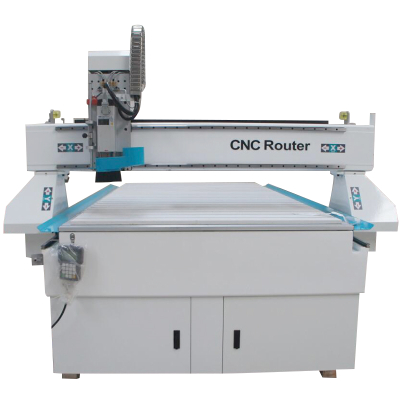

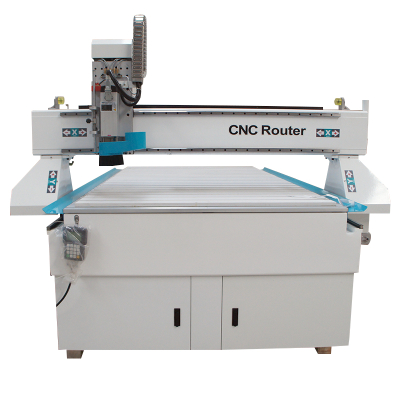

- Model Number: FM-1325
- Weight: 1000.000 kg
Applications:
wooden products, advertising signs, MDF cutting and engraving, embossed substantial furniture, decorative hollow out, plastic plates etc.
Items | Parameter | Feature | |
Body | Working size(XYZ) | 1300*2500*150mm | The overall welding, side finish machining with steel, strong, good rigidity, high accuracy, durable use. |
Table size(XY) | 1444*3000mm | ||
Square tube size | 80*120*3mm | ||
Gantry | Beam size(L*W*H) | 160*160*1800mm Taiwan TBI square rail | The beam adopts steel structure, solid and stable.The high accuracy ball screw not only ensure the smooth running but also ensure the high efficiency and accuracy of machine. Humanization of gearbox design, not only can achieve the effect of steady growth, the reasonable cast aluminum, high-precision bearing lubrication, making it light and convenient. Linear guide, rack, synchronous wheel and belt match with the transmission, to ensure the high running speed and accuracy. The unique double pinion driver, strong power, smooth transmission to ensure no deformation, no shaking under long time high speed running.
|
Z-axis transmission | |||
X-axis transmission
| |||
Y-axis transmission | |||
Transmission | screw | Ball screw | |
Rack, pinion | High accuracy straight rack and pinion | ||
Sync tires | |||
Max running speed | 25m/min | ||
Max engraving speed | 14m/min | ||
Resolution ratio | 0.005mm | ||
Resetting accuracy | 0.05mm | ||
Electrical Component | Transformer | Adopt high power and stability AC transformer, powerful, current foot. The high subdivision of AC driver, ensure the high speed and accuracy of the machine. 86-85 stepper motor with sufficient power wheel base.
| |
Driver | Fine fraction 1-64, 16 kinds of operational modes
| ||
Motor | Stepper | ||
Functional unit | Spindle | 3.0kw Speed:0-24000r/min Feimai 3.7kw inverter | Domestic well-known water-cooled brushless spindle with low noise, powerful cutting, and can ensure batch processing for a long time.The spindle adopts dedicated inverter with high performance ratio.Big lifting and high-performance submersible water pump decrease the spindle temperature, and ensure the normal working of the spindle. |
Inverter | |||
pump | Pump Lift: 3m | ||
Table structure | Aluminum (L*W) | 3000*100mm | The aluminum materials with beautiful style, high planeness, equipping with economic and durable PVC board, and make the whole machine looks magnificent. |
PVC plate(L*W) | 2440*80mm | ||
Mechanical and electrical parts | Control card | NC studio trial version | With the function of breakpoint and power -off continued engraving.Good software compatibility, it can compatible with type3/Artcam/Castmate/Artcut and other CAD/CAM design software, supporting G code |
Electric parts and table accessories | Clamp, Table decorative plugs | The electric parts with best design, selecting domestic well-known brands, minimize failure rate. | |
Chain | Adopt high flexible plastic bag material, durable use. | ||
Electric control box | Small control box | Adopt the control box with single door, economical and beautiful. | |
Cable | High quality, Strong anti-interference ability, durable use. |
