- Size: 13
- Place of Origin: China
- Brand Name:
- Model Number: FY-TSQ-1530D
- Weight: 1000.000 kg

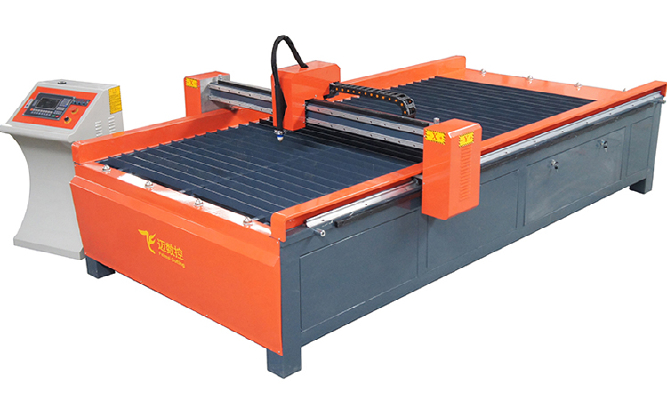

Product feature:
1. Beams adopt welding structure with high precision and small inertia. The machine body is processed with high precision to prevent deformation. The support for workpiece is cut by laser machine.
2. Transmission structure is high precision rack and special reducer, and adopt HIWIN linear rail to ensure high precision and high speed.
3. The drive system adopts USA chip control and high precision motors, providing AC power with big torque to ensure running smoothly under high speed.
4. The control system is 7 "screen, with English and Chinese language. The machine adopts high precision arc voltage automatic torch height controller.
5. Optional function: Plasma /Plasma and Flame
6. Optional configuration: Stepper motor, servo motor, HIWIN linear rail, SBR round rail
7. Machine size: 1300*2500, 1500*3000mm, 1500*4000mm,1500*6000mm(customized)
- Size: 13
- Place of Origin: China
- Brand Name:
- Model Number: FY-TSQ-1530D
- Weight: 1000.000 kg
Technical Parameters：
MODEL | |||
BASIC INFORMATION | Cutting method | Plasma | Flame(Optional) |
Machine size | 2000*3500*1400mm | ||
Cutting material | All metal sheet | Mild/High Carbon steel | |
Cutting size | 1500*3000mm | ||
Cutting thickness | According to Plasma source | 6-200mm | |
Lifting travel | ≤130mm | ||
Max travel speed | 15000mm/min | ||
Running accuracy | ≤0.05mm | ||
CONFIGURATION LIST | CNC controller | Startshaphon (Optional: FangLing) | |
Electric parts | France Schneider | ||
Auto Height control | HYD XPTHC-16 | Lifter | |
Motor drive mode | Stepper motor(Optional: Panasonic servo motor) | ||
Drive system | Dual drive | ||
Reducer | Gear box(Optional: Planetary reducer) | ||
Drive method | Rack and pinion drive | ||
Gas pressure | 0.4-0.7Mpa for normal plasma power | ||
X, Y axis | Round rail(Optional: Linear rail) | ||
EXTERNAL SUPPLY | Power | 220V/ 380V(Optional) | |
Cutting gas | Compressed air | Oxygen Ethyne(Propane) | |
Gas pressure | 0.4-0.7MPa | Oxygen:0.5MPa Fuel gas:0.1MPa | |
SOFTWARE | Graphic import method | USB | |
Programming software | AutoCAD(all dxf,dwg,CAM,NC files) | ||
Nesting software | FastCAM | ||
ACCESSORIES | Torch | One set of Plasma torch | One set of Flame torch |
Consumables | 10 sets of nozzles | 3 Flame nozzles | |
PACKING INFORMATION | Dimension | 2200*3600*1600mm | |
Weight | 800Kg | ||
