- Size: 0.5
- Place of Origin: Jinan
- Brand Name:
- Model Number: FM-BX1530D
- Weight: 160.000 kg
1. Adopt Startshaphon control system, it can cut arbitrary complex planar shape, high efficiency, low cost.
2. The nesting software can read Auto CAD format file directly and turn into cutting program. It has humanized human machine interface and powerful automatic programming system.
3. With SF25g torch height controller the plasma torch could adjust height automatically.
4. This machine has special features of compact structure, beautiful style, light weight and convenient movement. It can cut by manual control, and also can cut automatically with stable movement and high cutting accuracy.

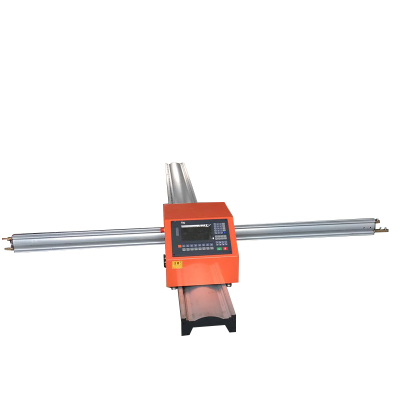

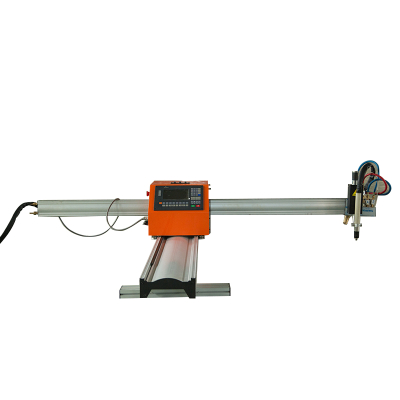

5. The machine adopts telescopic boom type structure, X, Y axis both adopt aviation aluminum alloy material, high accuracy, no deformation and good appearance.
6. Standard model: A、1525: 1500*2500mm; B、1530: 1500*3000mm
Optional size: 1500*4000/6000/8000/10000/12000mm
7. Application：Iron sheet, carbon steel, galvanized sheet, stainless sheet, Titanium plate and Aluminum plate, etc. Widely used in shipbuilding, duct, stoves, automobile, agricultural machinery, plate cutting, pressure vessel, tower, railway and aviation industries.
- Size: 0.5
- Place of Origin: Jinan
- Brand Name:
- Model Number: FM-BX1530D
- Weight: 160.000 kg
MODEL | FM-BX1530D | ||
BASIC INFORMATION | Cutting method | Plasma | Flame(Optional) |
Machine size | 3550*2100mm | ||
Cutting material | All metal sheet | Mild/High Carbon steel | |
Cutting size | 1500*3000mm | ||
Cutting thickness | According to Plasma source | 6-200mm | |
Lifting travel | ≤130mm | ||
Max travel speed | 6000mm/min | ||
Running accuracy | ≤0.05mm | ||
CONFIGURATION LIST | CNC controller | Startshaphon (Optional: FangLing) | |
Auto Height control | Starfire SF-25G | Lifter | |
Motor drive mode | Stepper motor | ||
Drive system | Single drive | ||
Reducer | Direct drive | ||
Transmission method | Rack and pinion drive | ||
Linear guide | Linear axis | ||
X,Y Axis beam | Heavy duty aviation aluminum-alloy | ||
EXTERNAL SUPPLY | Power | 220V/ 380V(optional) | |
Cutting gas | Compressed air | Oxygen Ethyne(Propane) | |
Gas pressure | 0.4-0.7MPa | Oxygen:0.5MPa Fuel gas:0.1MPa | |
SOFTWARE | Graphic import method | USB | |
Programming software | AutoCAD(all dxf,dwg,CAM,NC files) | ||
Nesting software | FastCAM | ||
